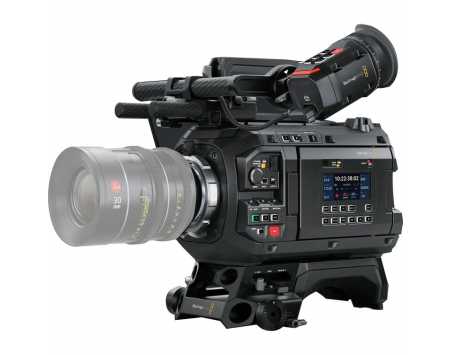

Blackmagic Design URSA Cine 17K 65 Camera
Experience the future of cinema with this bold 17K camera featuring a massive 65mm sensor and seamless cloud integration.
Place an OrderGet ready for big and bold cinema with the Blackmagic Design URSA Cine 17K 65 digital cinema camera. This 17K cinema camera provides a brand-new large-format 65mm RGBW sensor with 17,520 x 8040 resolution and numerous improvements over the URSA Cine 12K. Interchangeable lens mounts, built-in OLPF, 8TB of built-in storage, built-in live streaming, Generation 5 color science, and integration with the Blackmagic Cloud and the Blackmagic cinema ecosystem.
Quick Features
- Cinematic ultra-large format 2.2:1 aspect sensor with a massive 16 stops of dynamic range
- Lightweight camera body with industry-standard connections
- Blackmagic RAW for real-time 17K editing
- Generation 5 Color Science with new film curve
- Interchangeable lens mount with PL, LPL, EF, and Hasselblad options
- Built-in OLPF for reduced moire and aliasing
- Includes Blackmagic Media Module 8TB for recording
- Compatible with the Blackmagic Media Dock
- High-speed Wi-Fi, 10G Ethernet, or mobile data for network connections
- Built-in RTMP and SRT live streaming
- Optional Blackmagic URSA Cine EVF
- Includes DaVinci Resolve Studio for post-production
New 17K Sensor
The new URSA Cine 17K 65 camera features a new 65mm sensor designed for high-quality images at all resolutions from 4K to a massive 17K. The larger sensor builds on URSA Mini Pro 12K technology with 16 stops of dynamic range. The RGBW architecture provides equal amounts of red, green, and blue pixels to deliver rich colors at all resolutions.
Storage Options
Blackmagic Media Dock accelerates post-production workflow by making it faster and simpler to start editing and color correction. You can mount up to three Blackmagic Media Modules for high-speed access to media from multiple URSA Cine cameras, all at the same time.
The URSA Cine 17K records to the included Blackmagic Media Module 8TB, allowing customers to capture over four hours of Blackmagic RAW in 17K using the full 65mm sensor aperture or up to 20 hours in 4K. Customers can also use the optional Blackmagic Media Module CF, which has dual CFexpress slots.
Built-In Cloud Storage
The URSA Cine 17K features built-in ultra-fast Cloud Store technology, allowing customers to record at the highest resolutions and frame rates for hours and access their files directly over high-speed 10G Ethernet. It supports creating a small H.264 proxy file in addition to the camera's original media for upload to Blackmagic Cloud in seconds, so their media is available back at the studio in real time.
Lens Options
The lens mount is user-interchangeable between PL, LPL, EF, and Hasselblad mounts. A PL lens mount comes preinstalled on the camera body, and an LPL mount is included. Each mount has contact pins to read lens metadata for monitoring and post-production.
Built-In OLPF
The camera includes a high-performance, optical low-pass filter that is precisely matched to the sensor. The OLPF also incorporates updated IR filtering that improves far red color response, which, when combined with Blackmagic RAW processing for the URSA Cine 17K, preserves color and critical image detail for new levels of image fidelity.
Blackmagic Raw Capture
Blackmagic RAW is a format designed to capture and preserve the quality of the sensor data from your camera. Blackmagic RAW files store camera metadata, lens data, white balance, digital slate information, and custom LUTs to ensure consistency of image on set and through post-production. URSA Cine records to the included Blackmagic Media Module 8TB, allowing you to capture over 4 hours of Blackmagic RAW in 12K or 20 hours in 4K.
Built-In ND Filters
The URSA Cine features high-quality built-in ND filters that let you quickly reduce the amount of light entering the camera. Designed to match the colorimetry and color science of the camera, the 2, 4, and 6-stop filters provide you with additional latitude even under harsh lighting. The IR filters have been designed to filter both optical wavelengths and IR wavelengths evenly to eliminate IR contamination of the images from which many ND filters can suffer.
Monitoring Options
There is a large foldout 5" HDR touchscreen monitor on one side and an external color status LCD on the other. There is also a second 5" HDR touchscreen, allowing the crew to work around the camera without needing external monitors. There's even a dedicated focus puller mode to help customers get perfect focus. The URSA Cine 17K supports the optional Blackmagic URSA Cine EVF to make outdoor and handheld shooting accurate and easy.
Accessory and Control Ports
The 7-pin LEMO and 3-pin Fischer connectors on the front of the camera provide record start/stop and 24V power and are ideal for onboard accessories such as focus motors.
Wireless Bluetooth Control
If you're positioning the camera on the end of a jib or gimbal, you can get full control via Bluetooth from up to 30' away using Bluetooth. The Blackmagic Camera Control app for iPad or third-party apps such as Bluetooth+ or tRigger can control the camera from your iOS and Android devices. A free developer SDK with sample code is also available from the Blackmagic Design developer website, so you can create your own remote camera control and digital slate solutions.
Post-Production Workflows
There are three main post-production workflows that the URSA Cine 17K supports:
- You can record to the internal Blackmagic Media Module
- If you're offline, you can browse media and manually select which clips you want to upload later
- Live Sync your DaVinci Resolve project with Blackmagic Cloud. As the camera is recording, the media will continuously upload and sync to all DaVinci users on that project
Streaming Options
You can live stream directly from the camera using its hardware streaming engine, which supports RTMP and SRT streaming to major platforms or directly to clients. Simply connect to the internet via Ethernet, high-speed Wi-Fi, or even connect a 4G or 5G connection for mobile data.
Ample Power
An 8-pin LEMO connector on the back of the camera is compatible with 24V and 12V power supplies, so you can use new or existing ways to power your camera. The camera includes a 250W power supply and a B-mount battery plate, so customers can use a wide range of high-voltage batteries from manufacturers such as IDX, Blueshape, Core SWX, BEBOB, and more. There's also an additional 12V 2-pin LEMO output on the rear of the camera to power lower-voltage accessories.
Versatile Body Design
The evenly weighted camera body is built with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin to help customers move quickly on set.
Localized in 13 Languages
When setting up your camera, you can choose to work in English, German, French, Spanish, Portuguese, Italian, Polish, Russian, Ukrainian, Turkish, Chinese, Japanese, or Korean. It's easy to switch to another language, and it will display that language on all on-screen overlays, setup menus, and monitoring information in the selected language.
