SmallHD 702 Touch 7" On-Camera Monitor (SDI/HDMI)
| Daily Price | Weekly Price |
|---|---|
| $70.00 | $210.00 |
Monitor footage outdoors with this bright 7-inch touchscreen monitor.
Place an OrderDifferent battery plates are available for Sony L, V-mount batteries or Gold Mount Batteries.

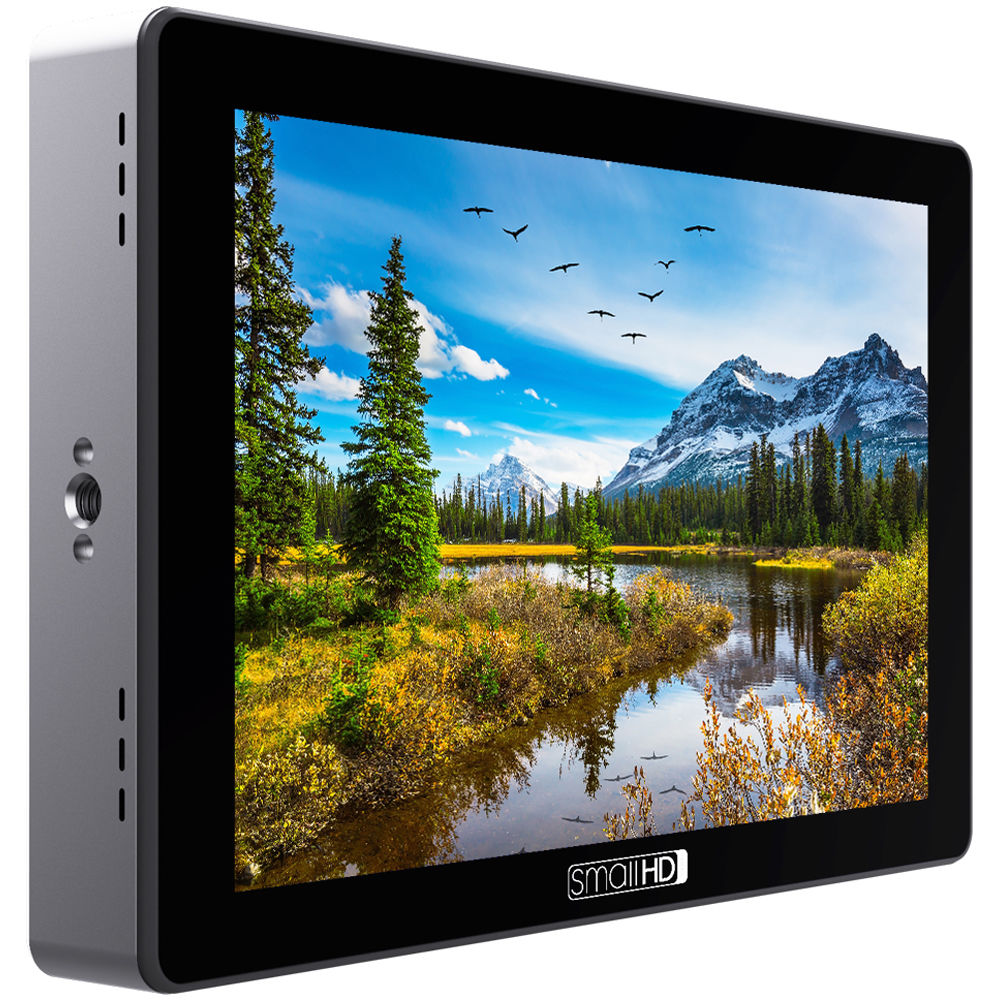

The SmallHD 702 Touch 7" On-Camera Monitor features an IPS LCD panel with a resolution of 1920 x 1200. The IPS touchscreen provides a wide off-axis viewing experience without a significant shift in color or contrast. The panel also features a maximum brightness of 1500 cd/m², which makes it more than well suited for use outdoors. The panel displays images in 8-bits per color channel, but the monitor's internal processing is 10-bit. The touchscreen capability of the monitor facilitates using the SmallHD OS3 software package that allows you to create looks and save them as pages.
OS3
OS3 offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
Monitoring Features
- Pixel zoom: 2x and 4x with smooth pan via joystick button
- Frame guides
- DSLR scale (Canon, Nikon)
- Custom scale
- Anamorphic de-squeeze
- Image rotate (manual/automatic)
- Image flip (manual/automatic)
- Cross conversion
- Focus assist (colors)
- Peaking
- False color
- Zebra (multiple)
- Waveform
- RGB parade
- Histogram
- Horizon indicator
- Image capture (individual and time-lapse)
- Custom LUTS
- LUT downstream
- LUT import
- Image overlay
- Audio meters
