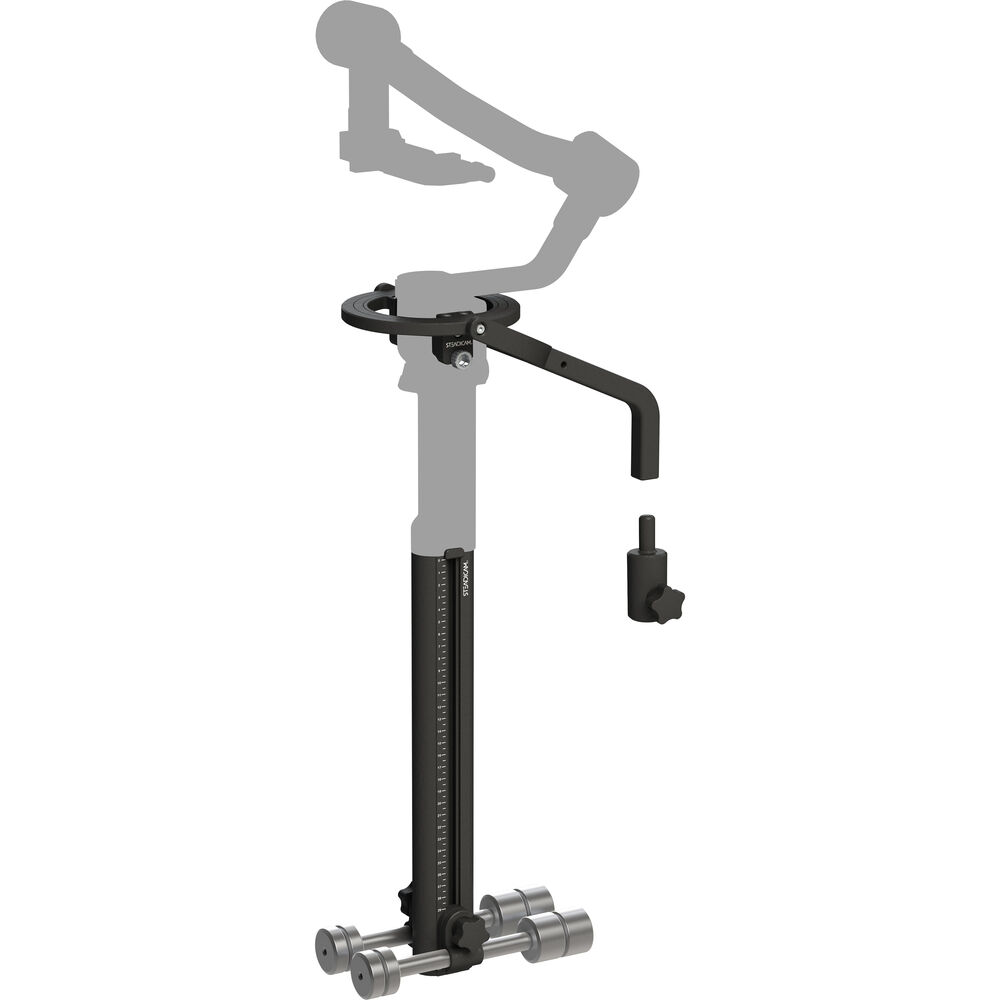

Steadicam Steadimate-RS Gimbal Yoke, Base, and Balance Stud

Steadicam Steadimate-RS Gimbal Yoke, Base, and Balance Stud

Transform your gimbal into a body-worn system for effortless, stabilized movement and smooth cinematic shots.

Place an Order

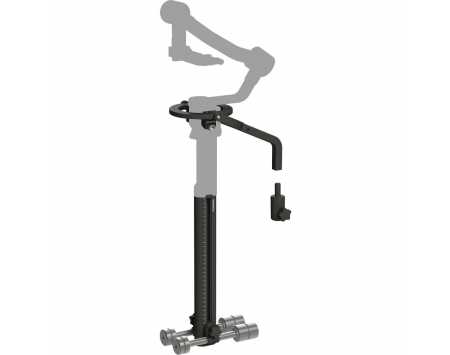

Designed for select DJI RS gimbal stabilizers, the Steadimate-RS Gimbal Yoke, Base, and Balance Stud from Steadicam provides you with the tools needed to attach your gimbal to a body-worn system. A yoke with an integrated handle, a post assembly, and a balance stud attaches to your compatible motorized gimbal to then affix to a separately available vest and stabilizer arm.



Eight balance weights and two weighted 15mm rods give you precise control over the system's balance for improved x- and y-axis movement. Various 1/4"-20 threads on both the weights and integrated handle allow you to incorporate additional accessories into your gear configuration. Using the Steadimate-RS and its compatible arm and vest system transfers the weight of your rig to your hips to reduce fatigue and extend shooting times.



Features at a Glance

  • Dovetail mounting onto DJI RS 2, RS 3, RS 3 Pro, and RS 4 Pro gimbals
  • Ultrasmooth pan bearing design
  • 1/4"-20 mounting holes on the handle
  • Vertical T-slot channels on the post assembly for fast weight balance adjustment
  • 15mm stainless steel weighted rods with industry-standard 60mm spacing
  • Handle has industry-standard 1/2" diameter for mounting post
  • No tools are required for weight adjustment or removal from the gimbal
  • Includes two 8 oz and two 4 oz weights with 1/4"-20 screws and 1/4"-20 female threads
